Specifications

SKU: BCT-05

Species: MOSO Bamboo

Surface Grain: Carbonized Vertical/Carbonized Side

Length: 2000,3000,4000mm

Width: 650mm

Thickness: 38mm

Construction: 3mm-6mm-20mm-6mm-3mm

Finish: Unfinished/oiled/lacquered

Uses: Kitchen Counters, islands, table tops, benchtops, countertops, worktops

Colors Available

Horizontally Carbonized Color

Horizontally Natural Color

Strand Woven Carbonized Color

Strand Woven Natural Color

Strand Woven Tiger Color

Vertically Carbonized Color

Vertically Natural Color

Normal Sizes

Size	Construction		Style	Color
(mm)	(mm)	Layers
2440x1220/762x38	3-6-20-6-3 or 4-5-20-5-4	5 crossed plies	VP/HP	Carbonized/ Natural
2440x1220/762x38	3-6-20-6-3	5 crossed plies	SWS	Carbonized/ Natural/Tiger-style
3100/4000x700x38	3-6-20-6-3	5	SWS	Carbonized/ Natural/Tiger-style
2440x1220x40	4-8-16-8-4 or 4-6-20-6-4	5 crossed plies	VP/ HP	Carbonized/ Natural
2440x1220x40	4-8-16-8-4 or 4-6-20-6-4	5 crossed plies	SWS	Carbonized/ Natural/Tiger-style
2000/3000/4000x620/650/700/762x40	4-8-16-8-4 or 4-6-20-6-4	5 crossed plies	VP/ HP	Carbonized/ Natural
2000/3000/4000x620/650/700x40	4-8-16-8-4 or 4-6-20-6-4	5 crossed plies	SWS	Carbonized/ Natural/Tiger-style
2000/3000/4000x620/650/700x40	4-6.4-6.4-6.4-6.4-6.4-4 or 4.3-5.8-7-5.8-7-5.8-4.3	7 crossed plies	VP/ HP	Carbonized/ Natural
2000/3000/4000x620/650/700x40	3.9-4.6-4.6-4.6-4.6-4.6-4.6-4.6-3.9	9 crossed plies	VP/ HP	Carbonized/ Natural

Remarks：

• VP = Vertical pressed
• HP = Horizontal pressed
• SWS = Strand Woven Bamboo surfaced (top& bottom layers are high-density strand woven bamboo)

Custom sizes are available on request.

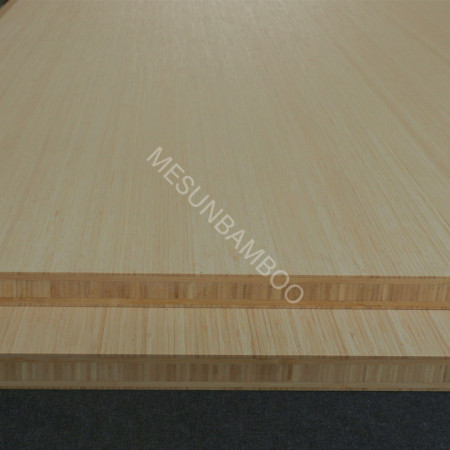

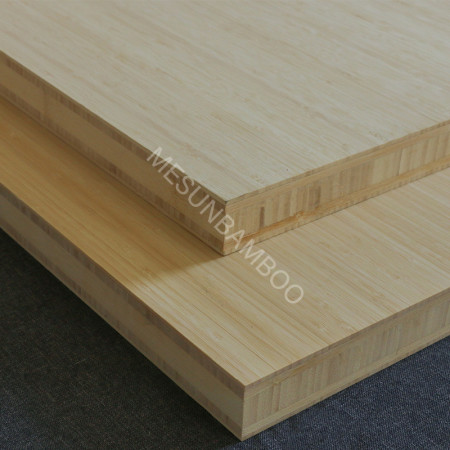

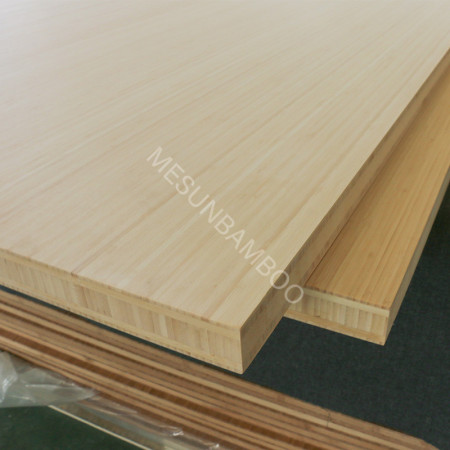

Structure

5 Layers of cross-laminated Construction

Surface & back: vertical bamboo boards

Core: vertical bamboo boards

All the structure layer thickness and size can be customized.

Applications

The 5-ply bamboo boards are widely used for worktops, countertops and benchtops of kitchens, vans, garages and laundries. Some our customers manufacture bamboo panels into crafts, kitchenwares, wall panels and bamboo furniture like cabinets, dining table tops, coffee tables, bed frames, standing desktops, sofas, chairs bamboo doors, cubicles, lockers etc..

Advantages

1. Different cross pressed bamboo construction
2. Stability and hardness
3. Food-safe grading, formaldehyde-free
4. Customized shape and size
5. 4 unique beautiful grains: vertical, horizontal, end-grain and strand woven grains
6. Low cost and more premium products
7. Designed edge profiles
8. Unfinished, oiled and lacquered surface are available

Packing & Loading

– All the bamboo benchtops are packed with PP bags wrapped with cartons & PE, loaded with plywood pallets.

– Normally we’ll stick the labels on both short ends

– A surface (the better surface of the panel ) on the top of PP bags.

– Custom pallets like fumigation pallets are available.
